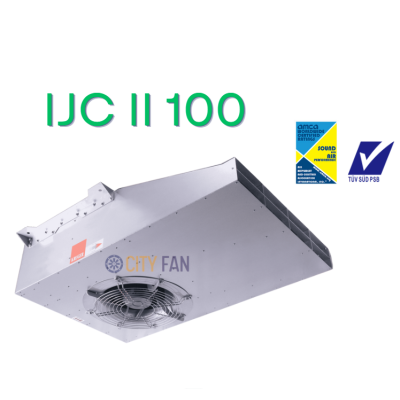

Kruger Fan IJC 100 - Quạt thông gió Kruger

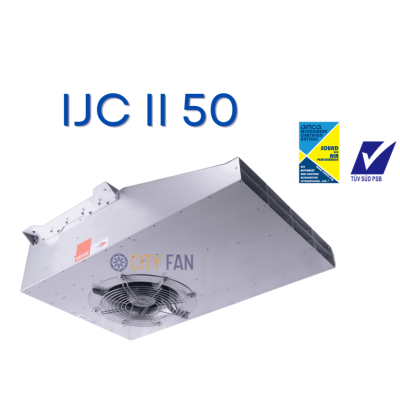

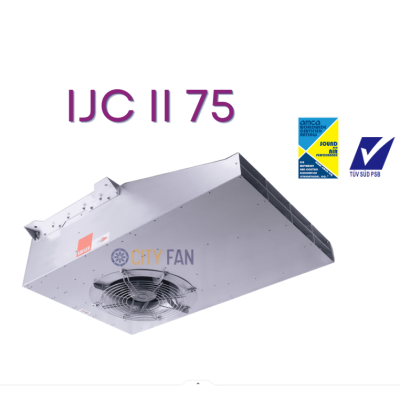

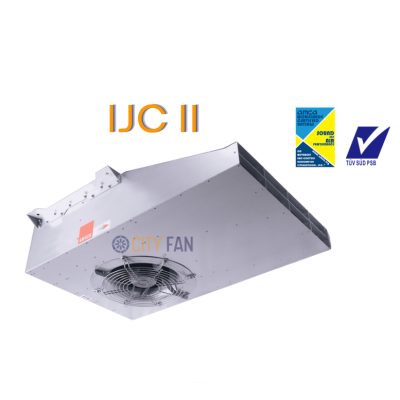

Kruger IJC II Series - Induced Jet Fan

Compact design, especially suitable for car park with low head room.

Large volume flow rate, long throw distance, low sound level.

Easy maintenance.

High temperature (up to 400°C/2 Hours) in accordance with EN12101-3 certification by TÜV SÜD a third party globally renowned testing and certification organisation.

Quick Facts

 •  Size from 50 to 100

 •  Capacity up to 11,100 m3/h

 •  Thrust force up to 97N

 •  Outlet velocity up to 26.2 m/s

 •  Suitable for ventilation and smokespill application

 Operating Temperature

 •  General ventilation: -20°C to +55°C.

 •  Smoke exhaust system: 200°C, 250°C, 300°C or 400°C - 2 hrs

Motor

•   General Ventilation

All motors are IP55, Class F insulation, Totally Enclosed Non-Ventilated (TENV).

•   Smoke Exhaust System

All motors are IP55, Class H insulation, Totally Enclosed Non-Ventilated (TENV) High Temperature Rated Motor (200°C, 250°C, 300°C or 400°C - 2 hrs, TUV SUD PSB certified). 60 Hz motor is available upon request.
